Transcend PC-133 PC133 SO-DIMM 128G SD RAM 144pin TS16MSS64V6G

$9.99
$9.99
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
  • DESCRIPTION
  • SHIPPING INFORMATION

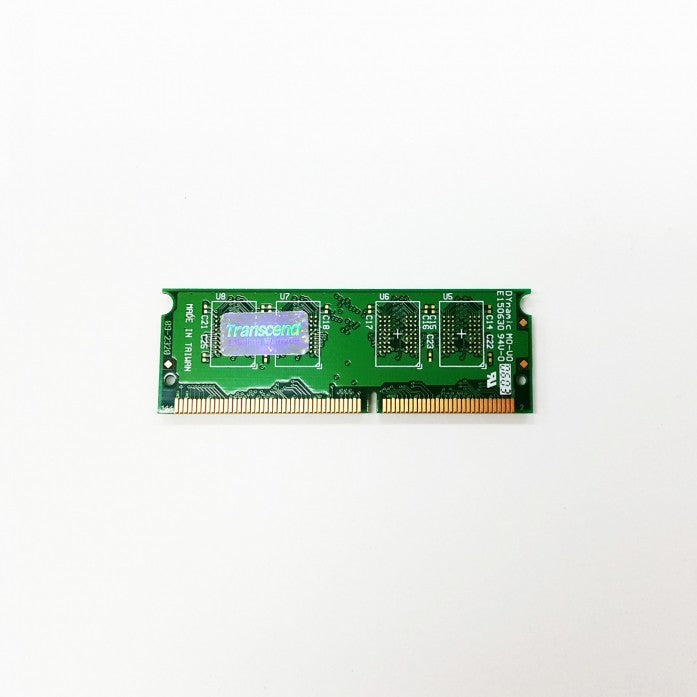

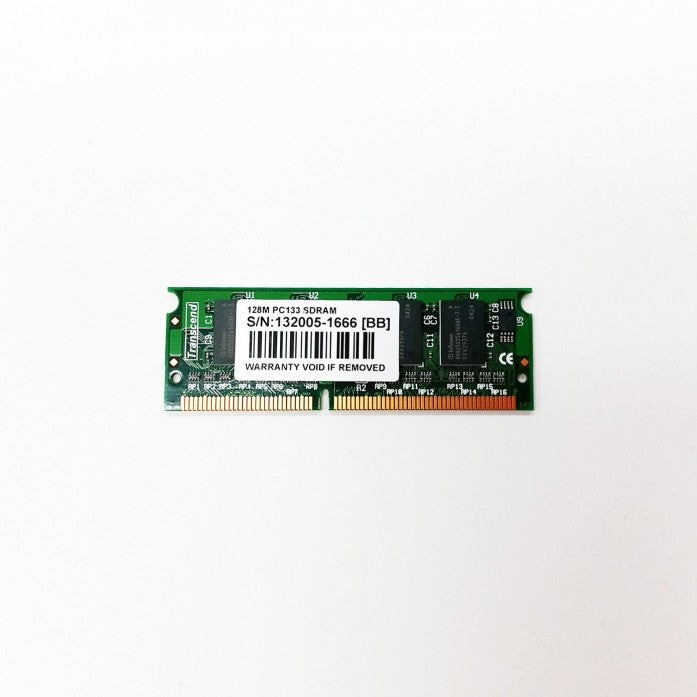

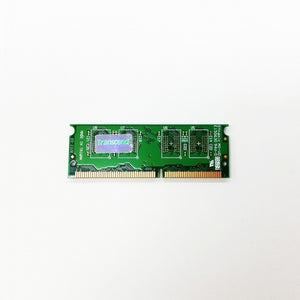

The TS16MSS64V6G is a 16M bit x 64 Synchronous Dynamic RAM high-density memory module. The TS16MSS64V6G consists of 4 piece of CMOS 16Mx16bits Synchronous DRAMs in TSOP-II 400mil packages and a 2048 bits serial EEPROM on a 144-pin printed circuit board. The TS16MSS64V6G is a Dual In-Line Memory Module and is intended for mounting into 144-pin edge connector sockets. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock cycle. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.



Features
•  RoHS compliant products.
•  Performance Range: PC133.
•  Burst Mode Operation.
•  Auto and Self Refresh.
•  Serial Presence Detect (SPD) with serial
EEPROM
•  LVTTL compatible inputs and outputs.
•  Single 3.3V + 0.3V power supply.
•  MRS cycle with address key programs.
Latency (Access from column address)
Burst Length (1,2,4,8 & Full Page)
Data Scramble (Sequential & Interleave)

•  All inputs are sampled at the positive going edge
of the system clock
