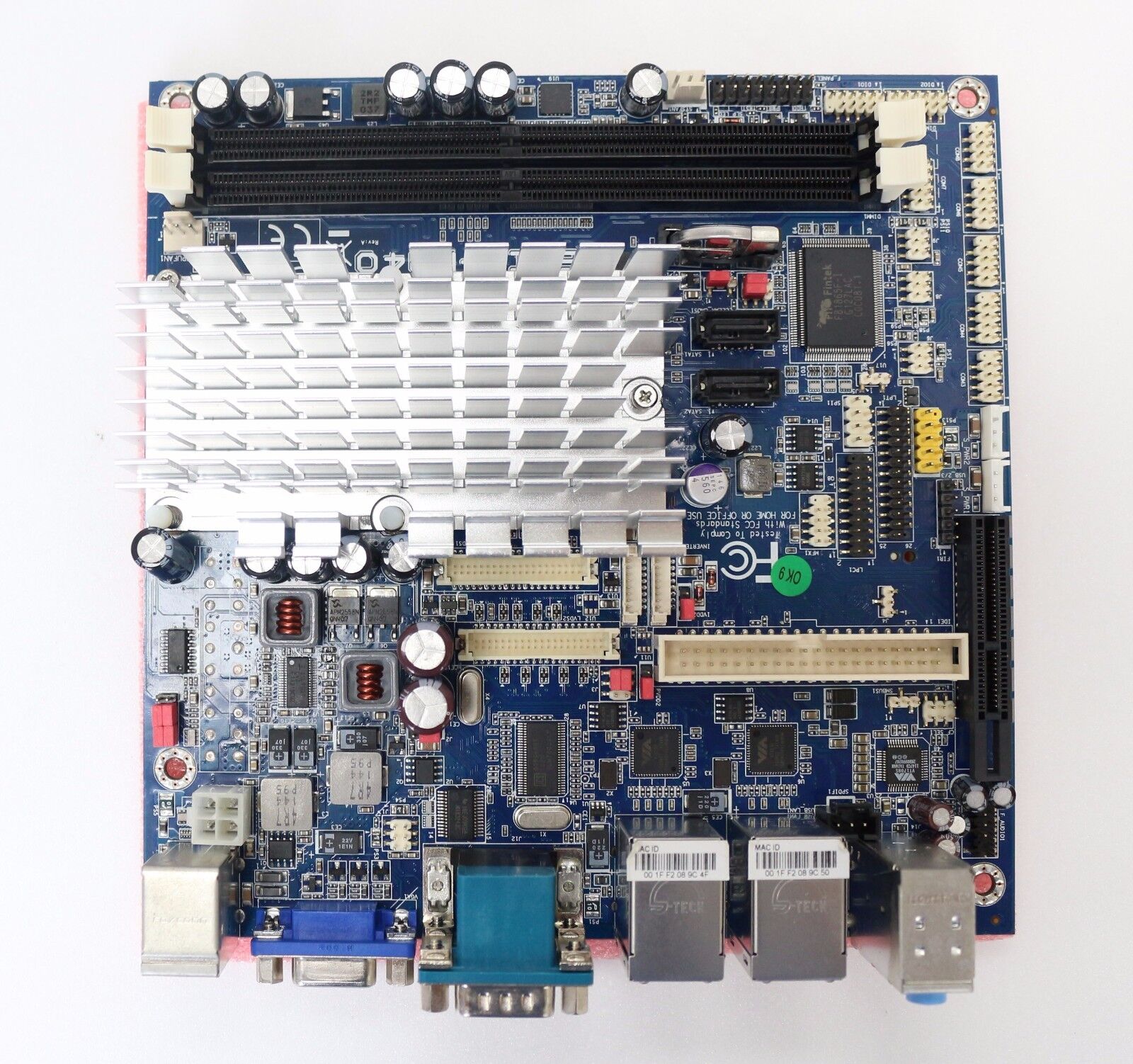

VIA EPIA-M840-12PE Mini-ITX Board

The VIA EPIA-M840 is available in both active and passive cooling configurations with a choice of either a fanless 1.2GHz or a performance oriented 1.6GHz VIA Nano® E-Series processor. The VIA VX800 media system processor supports 2 of DDR2 DIMM system memory and provides DirectX® 9 integrated graphics, crystal clear HD audio and Gigabit networking and advanced video acceleration for MPEG-2, WMV9 and VC1 video formats, plus a VMR capable HD video processor.

Main Features

  • Active and Passive cooling configuration
  • Integrated VIA C-9 HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration
  • Support for VGA and dual channel LVDS displays
  • VIA Nano® E-Series processor
  • Designed for advanced Industrial Automation, Kiosk and HMI applications
  • Windows XP, Windows 7, Windows CE Supported
Model Name EPIA-M840
Processor 16/16P: 1.6GHz VIA Nano® E-Series (with fan)
12E/12PE: 1.2GHz VIA Nano® E-Series (fanless)
Chipset VIA VX800 Unified Digital Media IGP chipset
BIOS Award BIOS, 4/8Mbit Flash memory
System Memory 2 DDR2 533/667 DIMM sockets
Up to 4GB memory size
Storage 2 SATA connectors (pin#7 powered with selectable GND/5V)
2 SATA 3.5” HDD power support (for DC-In SKU only)
Graphics Integrated VIA Chrome®9 HC3 DX9 2D/3D graphics with VC1, MPEG-2, WMV9
decoding acceleration
Onboard IDE UltraDMA 133/100 pin connector with 2.54mm 40-pin
LAN 2 VIA VT6130 Gigabit LAN controllers
Audio VIA VT1708S High Definition Audio Codec
Super I/O Fintek F81865-I
Expansion I/O 1 PCIe x4 slot
Onboard I/O 1 CF Type I
2 USB ports
1 Front audio pin header
1 PS/2 keyboard/mouse pin header
6 RS-232 pin headers (powered with selectable 5V/12V)
1 LPT pin header
2 Digital I/O pin headers (GPI x 8 + GPO x 8)
1 System temperature reading pin header
1 Front panel pin header
2 Smart fan connectors for CPU/Sys
1 SIR pin header (IRDA 1.0)
1 LPC pin header
1 SMBUS supporting VIA MFX-01 module
1 S/PDIF-out pin header
1 PCIe x4 slot
2 Dual-channel 24-bit LVDS
2 Backlight control connectors for inverter power and brightness control

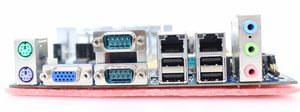

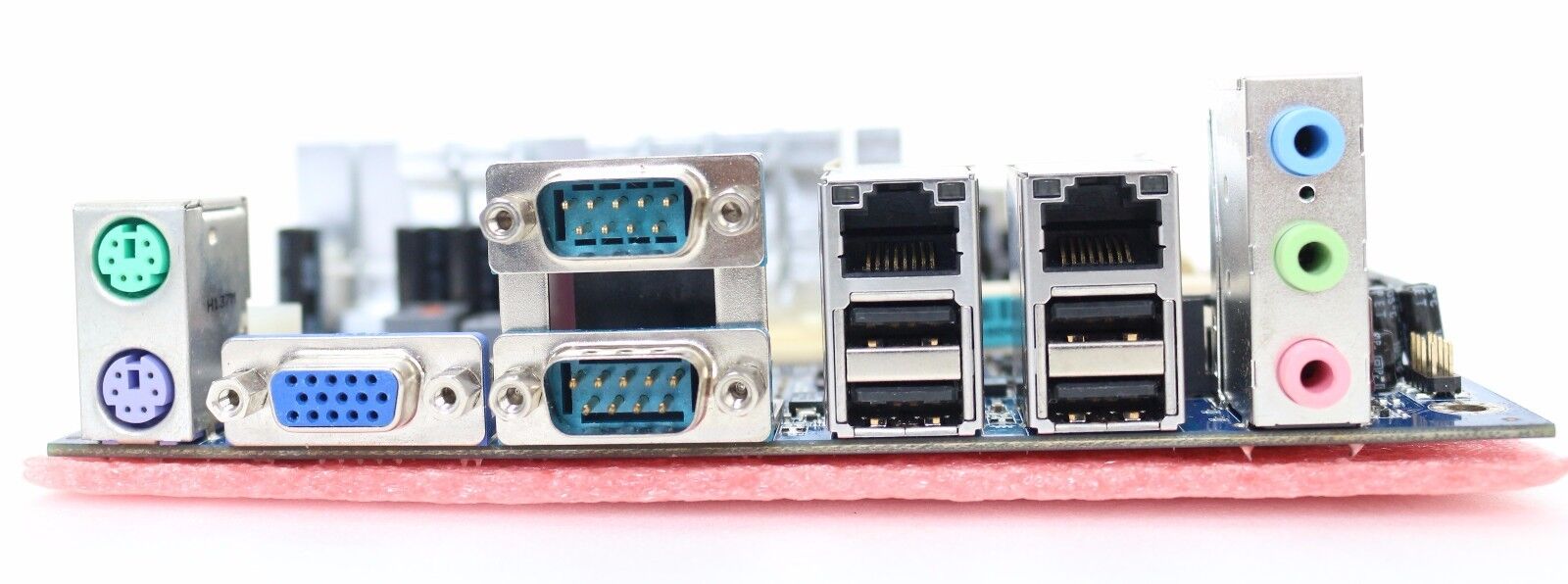

Back Panel I/O 4 USB 2.0 ports
1 VGA port
2 COM (powered with selectable 5V/12V)
2 Gigabit Ethernet ports
3 Audio jacks (Line-out, Mic-in, Line-in)
1 PS/2 KB/MS port
Power Supply ATX Power (for EPIA-M840-16 & EPIA-M840-12E)
12V DC-in (for EPIA-M840-16P & EPIA-M840-12PE)
Operating System Windows® 7, WES, Windows® CE, Linux
System Monitoring and Management Keyboard Power-on, Timer Power-on
System power management, AC power failure recovery
Wake-on LAN, Watch Dog Timer
Operating Temperature 0°C ~ 60°C
Operating Humidity 0% ~ 95% (non-condensing)
Form Factor Mini-ITX (17cm x 17cm, 6.7" x 6.7")
Compliance CE/FCC/RoHS
