GIGAIPC EMB-H110B Mini-ITX Intel 6/7th Gen CPU DC 12~24V 6xLAN

$300.00
$300.00
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
  • DESCRIPTION
  • SHIPPING INFORMATION

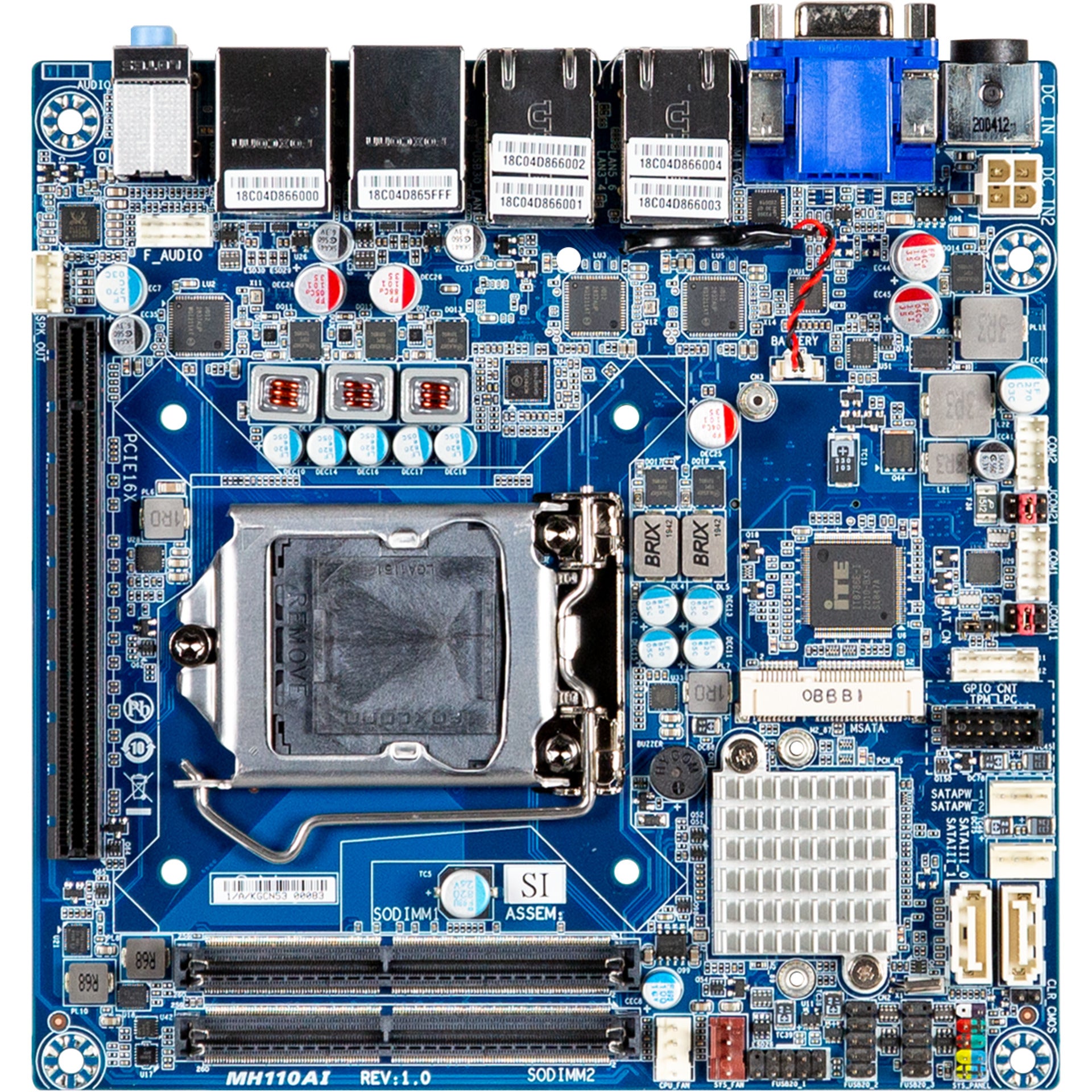

mITX-H110B


• Mini-ITX form factor
• Support 7th/6th Generation Intel® Core™ Processors
• Intel® H110 Express Chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 6 x GbE LAN Ports
• 2 x SATA 6Gb/s Ports

Specification

Form Factor

Mini-ITX
170W x 170D(mm)

CPU

Support for 7th/6th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU

Socket

1 x LGA 1151

Chipset

Intel® H110 Express Chipset

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400/2133 MHz memory modules

Ethernet

6 x GbE LAN Ports (1 x Intel® I219V and 5 x Intel® I211AT)

Video

Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

2 x SATA 6Gb/s Ports

Expansion Slots

1 x PCIe x16 (Gen3 x16)
1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)
1 x Full-size mSATA

Internal I/O

1 x 4-pin ATX main power connector
2 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
2 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8-bits) & SMBus header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper

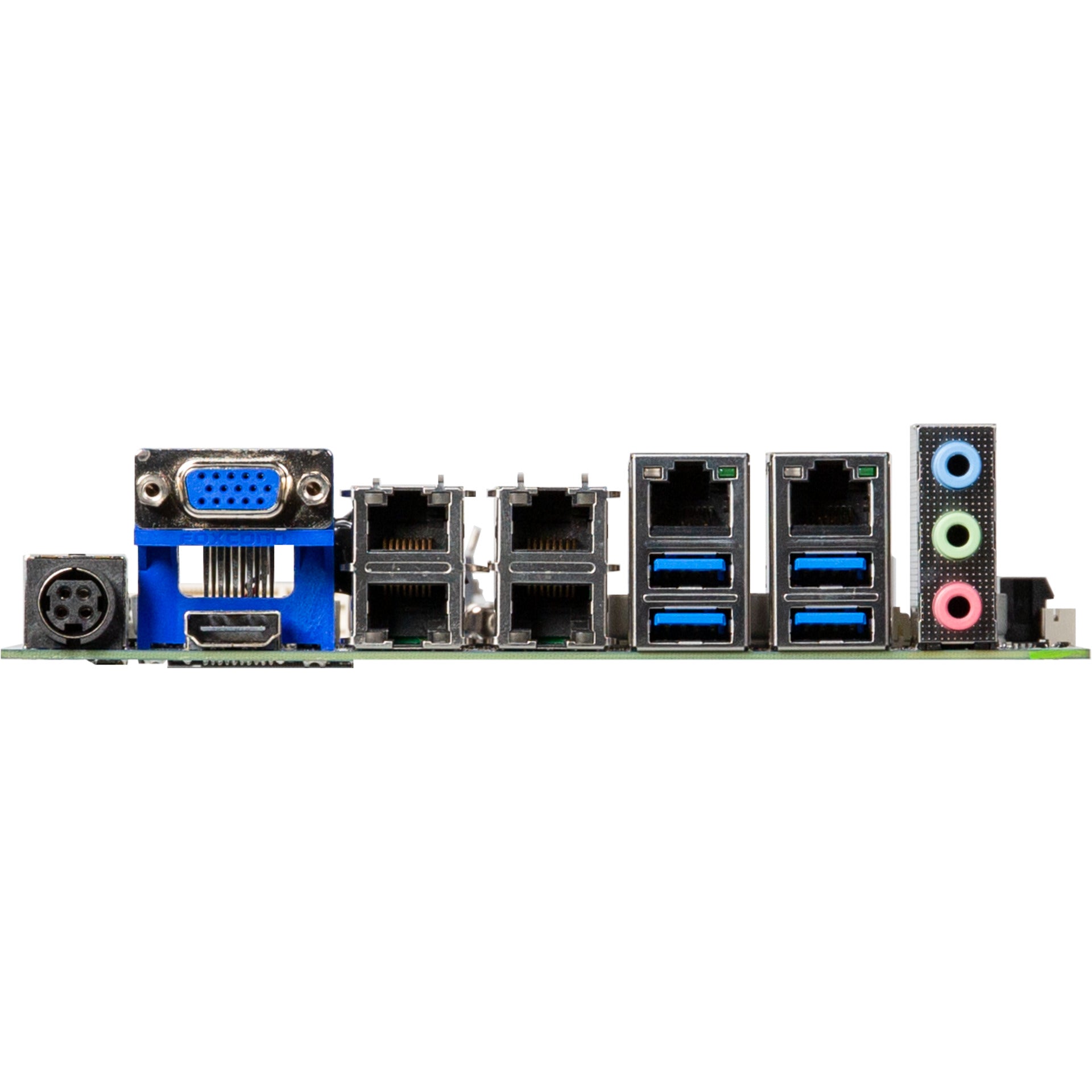

Rear l/O

3 x Audio Jacks (Line in, Line out, Mic in)
1 x HDMI
1 x VGA
6 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V/+24VDC)

TPM

1 x TPM header

OS Compatibility

Windows 10 (x64)
Windows 7 (x64)

Operating Properties

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
