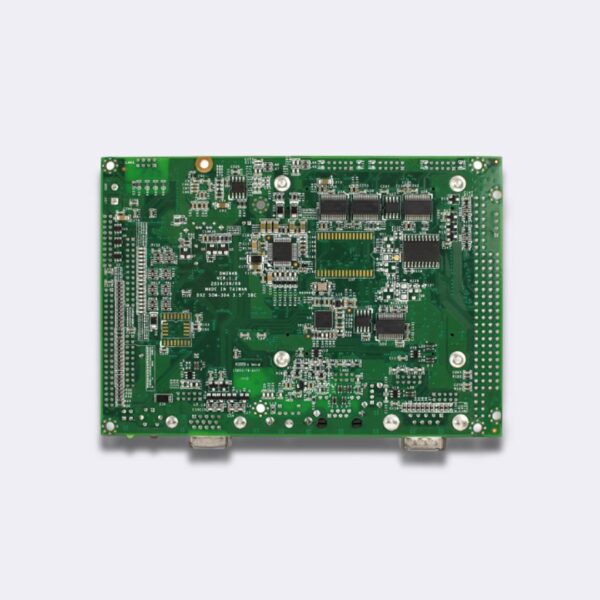

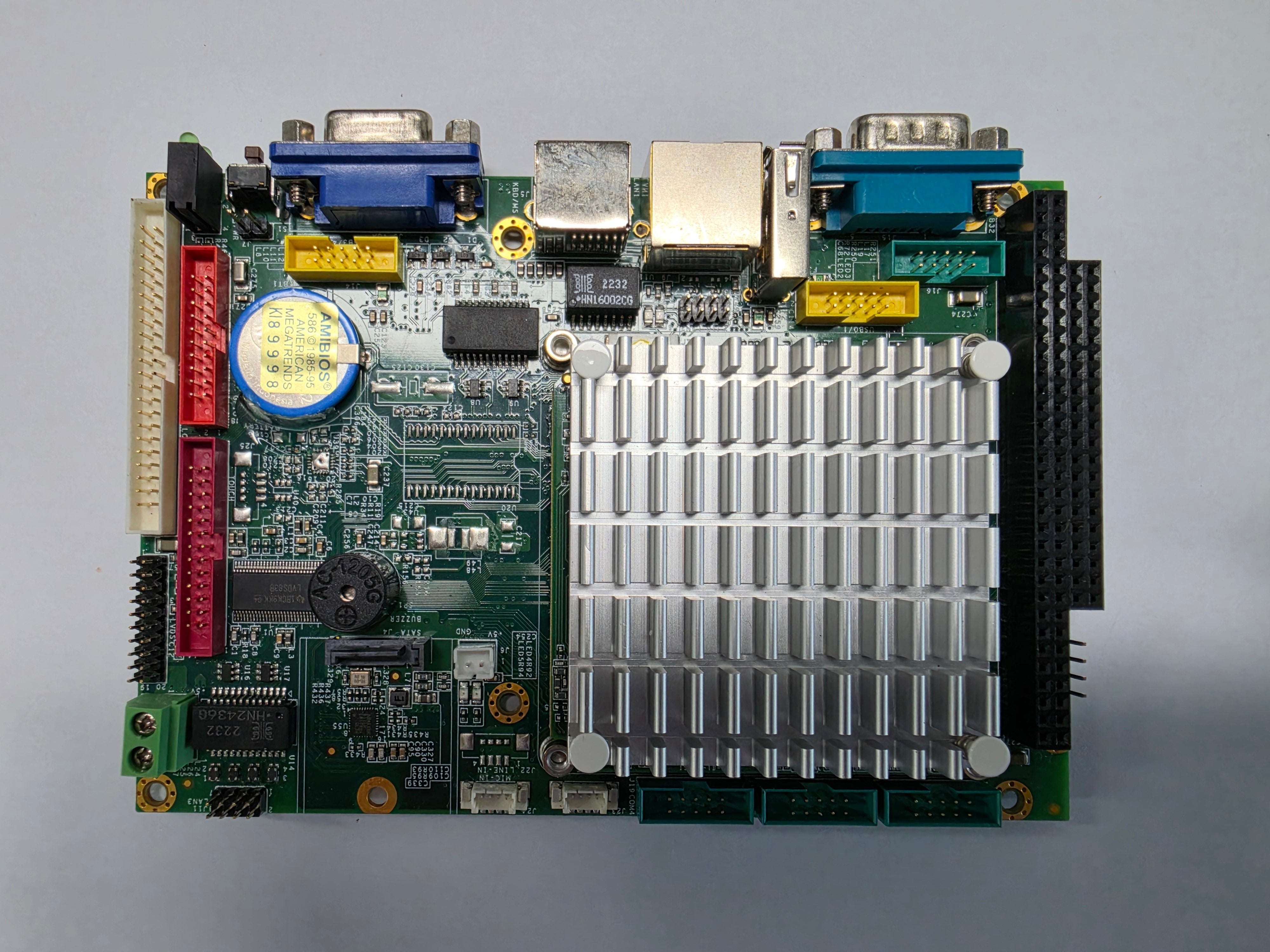

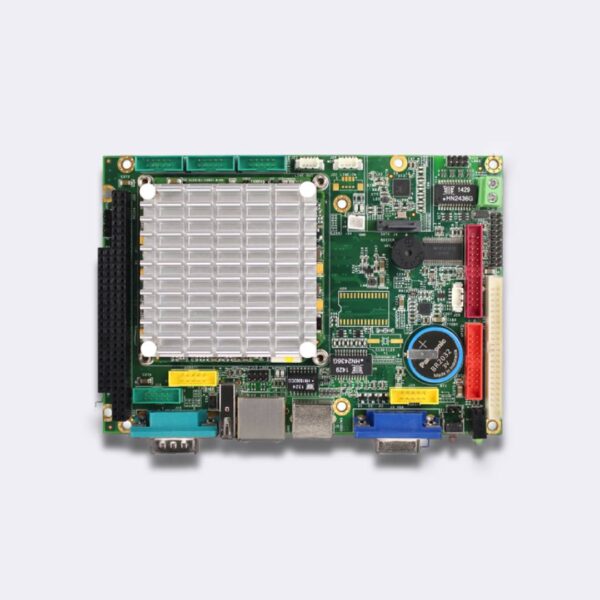

ICOP VDX3-6726-V2-1G CPU Board
- DM&P SoC Vortex86DX3- 1GHz
- 1GB DDR3 onboard
- 4S / 4U / VGA / LCD / LVDS / 2GLAN / LAN / PWM / Audio / 16GPIO
- Operation Temperature: -20 ~ +70°C
- Onboard 4MB SPI Flash Disk
- PC/104 Connector Onboard
Specifications
| Processor | DM&P SoC CPU Vortex86DX3 -1GHz L1:32K I-Cache, 32K D-Cache L2 Cache:512KB |
||
| RAM | 1GB DDR3 Onboard | ||
| BIOS | AMI BIOS | ||
| Bus | PC/104 Standard Compliant | ||
| Display | Integrated 2D VGA chip with dual display support (VGA +TTL / VGA + LVDS) VGA: Maximum resolution up to 1920×1080 @ 60Hz LVDS: Maximum resolution up to 1024×768 @ 60Hz Single-channel 24-bit LVDS |
||
| LAN | Integrated 10/100Mbps Ethernet x1 Realtek 8111H GbEx2 |
||
| I/O Interface | RS232 x4 Parallel x1 DOS hot SWAP x1 (Optional) HD Audio |
USB (ver. 2.0) x4 16-bit GPIO x1 PS/2 touch controller x1 (Optional) |
|
| Connectors | 2.54mm 4-pin pin header for DC output x1 2.54mm 2-pin pin header for Reset x1 2.54mm 104-pin PC/104 connector x1 2.0mm 44-pin box header for LCD x1 2.0mm 26-pin box header for Parallel x1 2.0mm 20-pin pin header for 16-bit GPIO x1 2.0mm 20-pin pin header for LVDS x1 2.0mm 10-pin box header for USB x2 2.0mm 10-pin box header for RS232 x4 2.0mm 8-pin pin header for Ethernet x1 2.0mm 8-pin pin header for GbE x1 1.25mm 4-pin wafer connector for Line-out/MIC-in x2 2-pin box header for DC 5V output x1 7-pin SATA connector for SATA DOM x1 RJ45 connector for GbE x1 15-pin D-Sub female connector for VGA x1 9-pin D-Sub male connector for RS232 x1 PS/2 connector for Keyboard/Mouse x1 |
||
| Power Requirement | DC +5V @1300mA (Typical) | ||
| Operating Temp. | -20C ~ +70°C(Single Core) -10°C ~ +60°C(Dual Core) -40°C ~ +85°C (Optional for Single Core) -20°C ~ +70°C(Optional for Dual Core) |
||

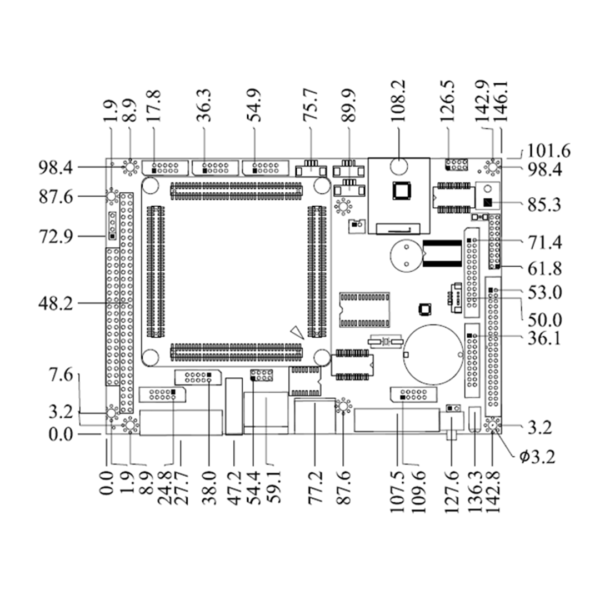

| Dimensions | 102mm x 146mm | ||
| Weight | 150g | ||
| O/S Support | Windows 7 Windows Embedded Standard 7 Windows Embedded Compact 7 Windows Embedded CE6.0 Windows XP Professional Windows Embedded 2009 |
Linux DOS POS Ready (WePOS) QNX VxWorks Free BSD |
|
