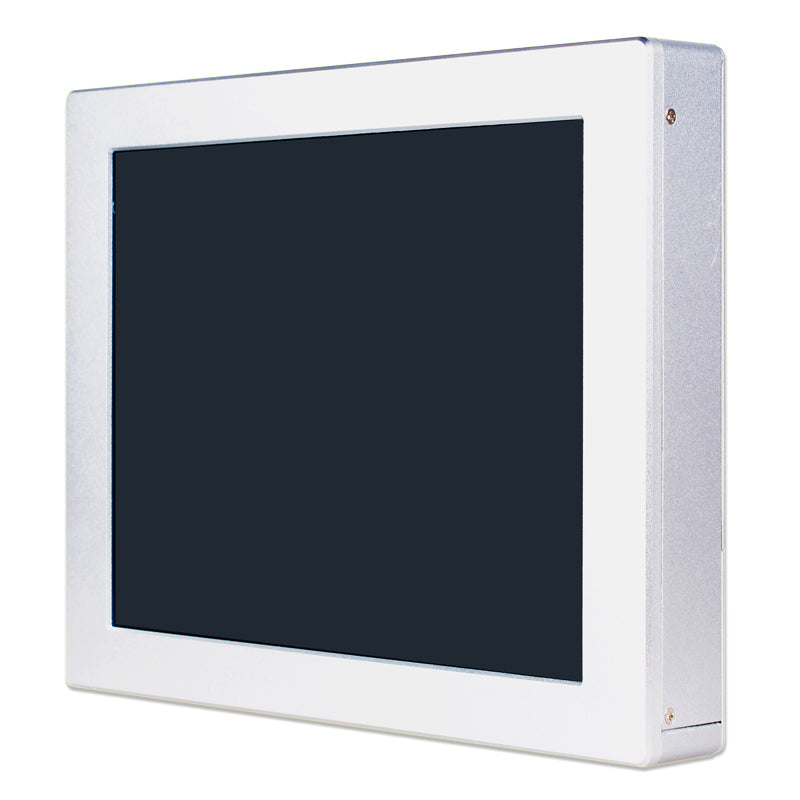

Industrial Touch Panel System
HPC-121SC-2930-4G
1. 12.1” 450 nits high brightness SVGA TFT LCD with LED backlight
2. Projective capacitive type Touch
3. Onboard Intel® Bay Trail-M N2930 1.83GHz Quad Cores CPU
4. Onboard SAMSUNG 4G/1333MHz DDR3L Memory
5. Support Dual Intel® Gigabit LAN
6. Support 3 * COM ports (COM2/COM3 Support RS422/485)
7. Support 2.5” SATA HDD
8. 1 * M-SATA Socket
9. 1 * Mini PCI-E Socket
10. Support 4G SIM Card
|
Display |
|
|
Front Bezel |
- IP65, NEMA 4 rugged protection, metal front bezel |
|
Display Type |
- 12.1" With LED Backlight |
|
Brightness (cd/m²) |
- 450 nits |
|
Display Color |
- 262K |
|
Resolution |
- 1024 x768 @ 60Hz |
|
Viewing Angle (H/V) |
- 160°/160° |
|
Pixel Pitch |
- 0.24 x 0.24 mm |
|
Aspect Ratio |
- 4:3 |
|
Contrast Ratio |
- 700:1 |
|
Response Time |
- 8 ms |
|
Operating Temperature |
--20 ~70°C |
|
Touch screen |
|
|
Type |
- Projective capacitive type |
|
Active Range |
- 290.0 x 220.5mm ±0.3mm |
|
Transparency |
- 85 ±5% |
|
Surface Hardness |
- ≧6H (ASTM D3363, pressure 1N/45°) |
|
Operating Force |
- ≦ 10g |
|
z |
--20 ~ 70°C |
|
Main System |
|
|
CPU |
- Intel® Bay Trail-M N2930 1.83GHz/QC |
|
RAM |
- 4G 1333MHz DDR3L SAMSUNG DRAM |
|
BIOS |
- 64MB SPI Flash ROM |
|
Storage |
- 1 * 2.5” SATA HDD (SATA-2) - 1 * M-SATA connector |
|
Watchdog Timer |
- 256 levels, 0~255 sec. |
|
OS Support |
- Windows 7 / 8.1 / 10 / Linux (Option) |
|
I/O Connector |
|
|
I/O Ports and Switches |

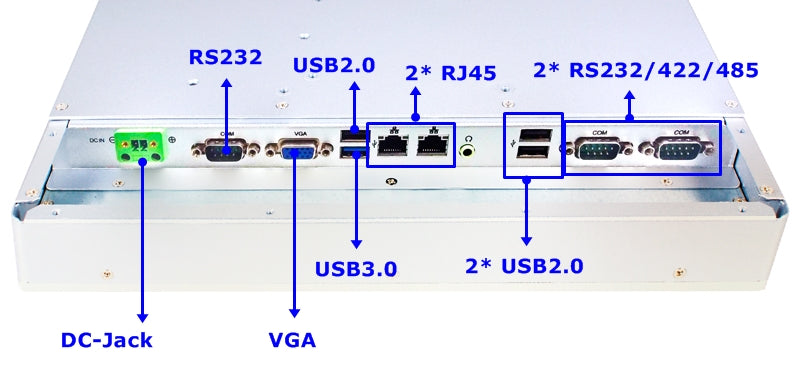

- 1 * USB3.0 - 3 * USB2.0 - 1 * RS232 - 2 * RS232/422/485 - 1 * CRT - 2 * LAN (Intel® I211AT Gigabit LAN) - 1 * Line-out - 1 * Euro terminal block 9~24V DC input |
|
Expansion Interface |
|
|
Expansion |
- 1 * PCI-E mini card for wifi or 3G |
|
Power |
|
|
Power Input |
- AC version: 100~240V AC-DC 60W power adapter or - DC version: 9~24VDC with over current protection fuse |
|
Power Consumption |
- 27W |
|
Dimensions |
|
|

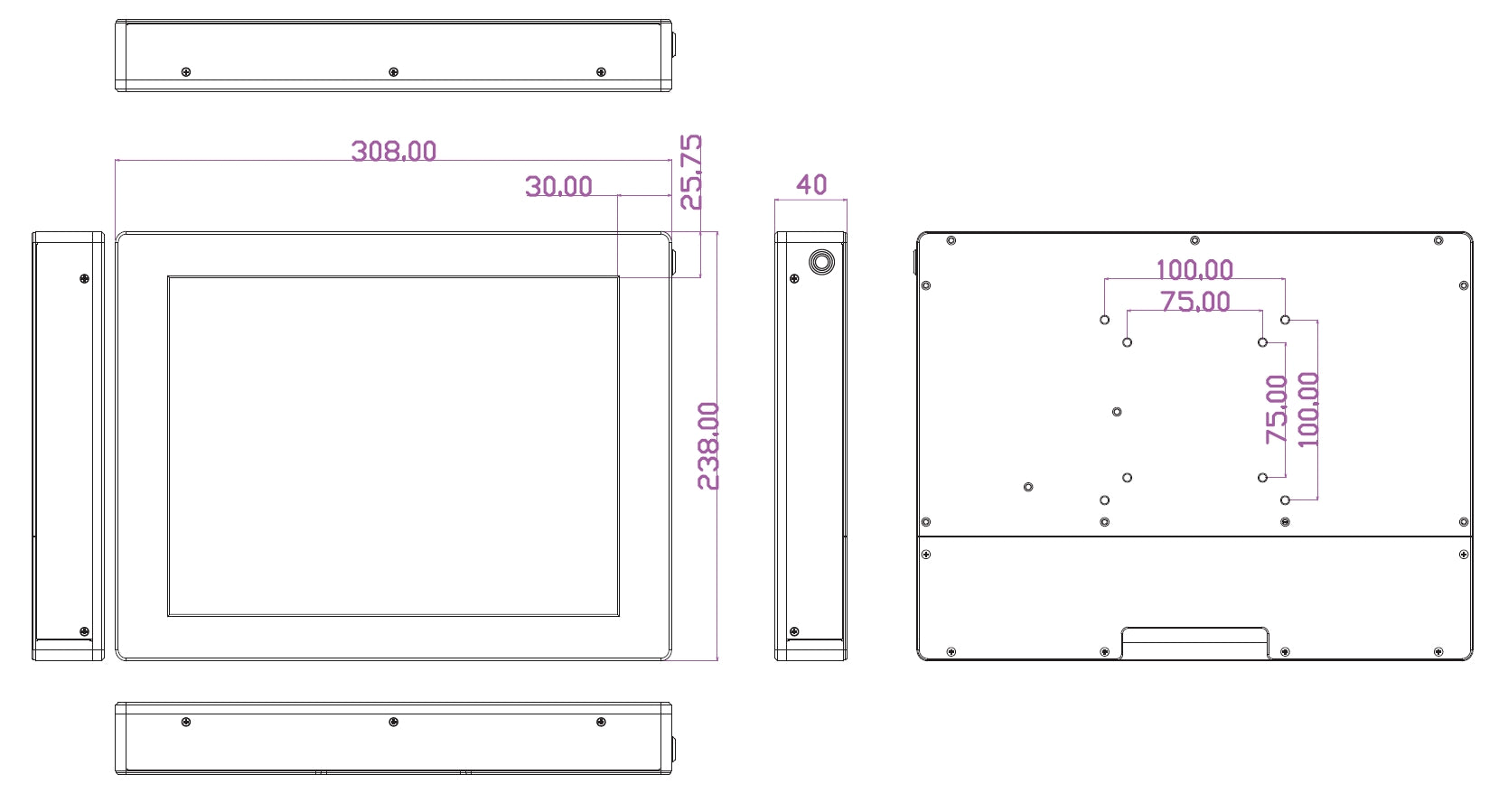

Case Dimensions |
- 308*238*40mm |
|
Packing Dimensions |
- Net Weight: KG - Gross Weight: KG - Color Box dimension: (W) * (D) * (H) mm |
|
Certifications |
|
|
Certifications |
- CE, FCC, IP65 |
|
Environment |
|
|
Temperature |
- Operating: -10°C ~ 60°C (with W.T. DRAM/HDD in airflow condition) - Operating: -10°C ~ 60°C (with W.T. DRAM/HDD) |
|
- Storage: -20°C ~ 70°C |
|
|
Shock |
- Operating: 15G，11ms duration |
|
Vibration |
- Operating: 5~500Hz/1 Grms |
